Apple’s family bucket charger went into battle, and the iPhone15 mobile phone was fully charged and time-consuming test
preface
The iPhone 15 series has been officially released, and the Doomay.com is also the first time to charge the four models, bringing users a clearer charging evaluation; Based on Apple’s family bucket charger, is there a difference in the full battery time performance of the iPhone 15 mobile phone.
Unboxing introduction
As is customary, look at the packaging first.

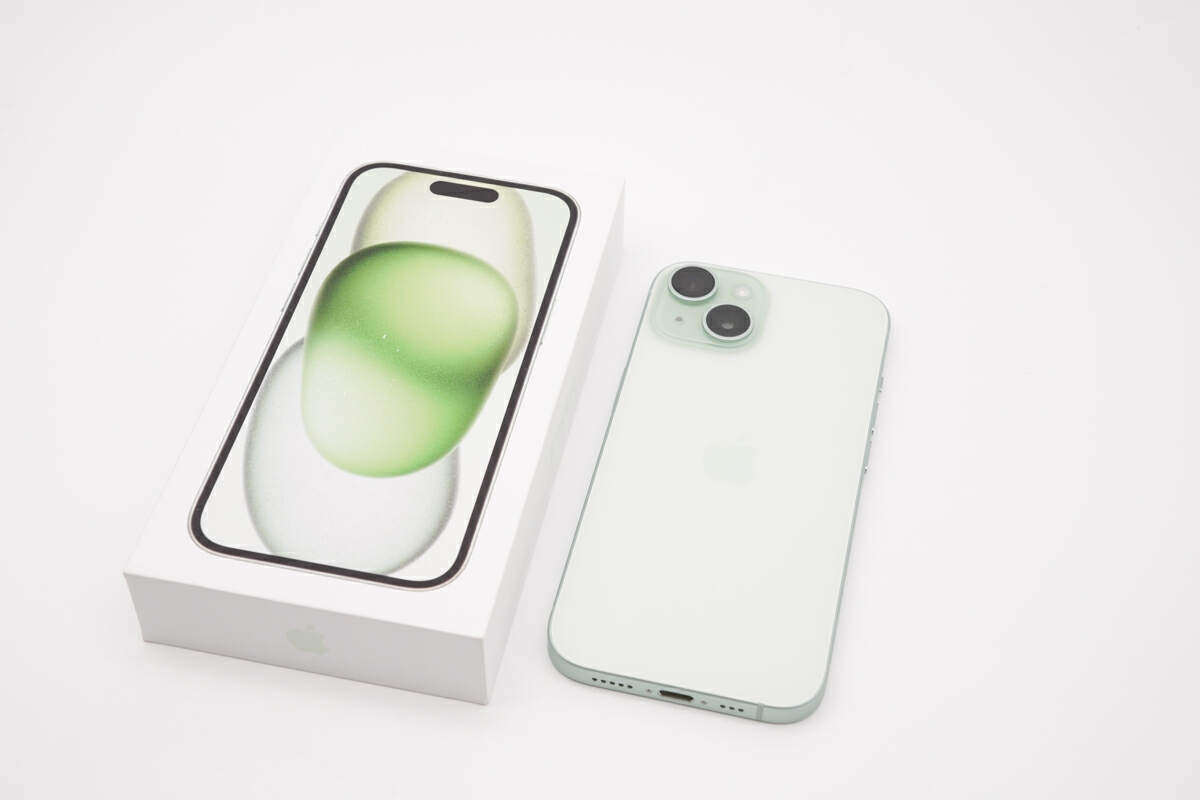

The front of the iPhone box is still an appearance illustration of the same size, the top of the mobile phone screen is designed with a “smart island” design, and the back panel of the mobile phone is frosted.

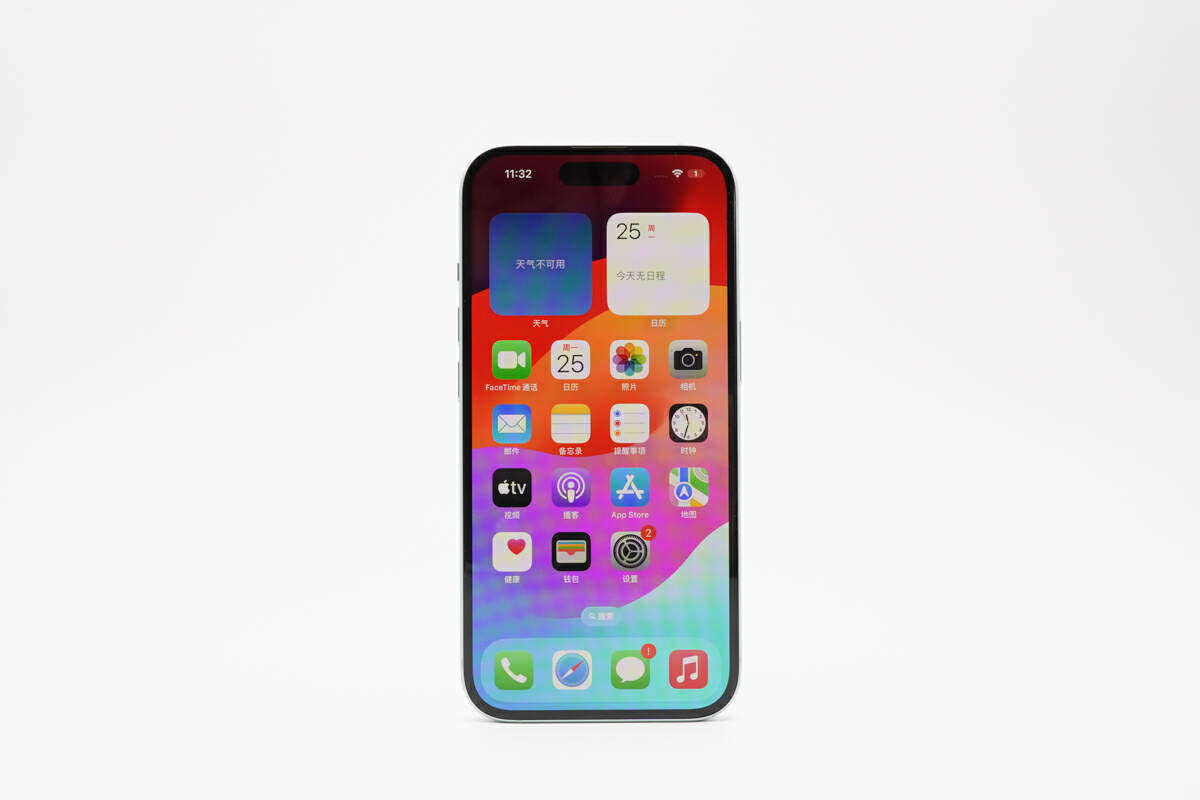

The front of the iPhone 15 phone has a 6.1-inch Super Retina XDR display with a super porcelain crystal panel, and the notch design on the top of the standard version has also been changed to “Smart Island”, and the interior is a TrueDepth camera module, and the interactive experience is consistent with the previous Pro model. In addition, the screen of the iPhone 15 mobile phone has a rounded transition from the middle frame, and the feel is smoother than the previous generation.

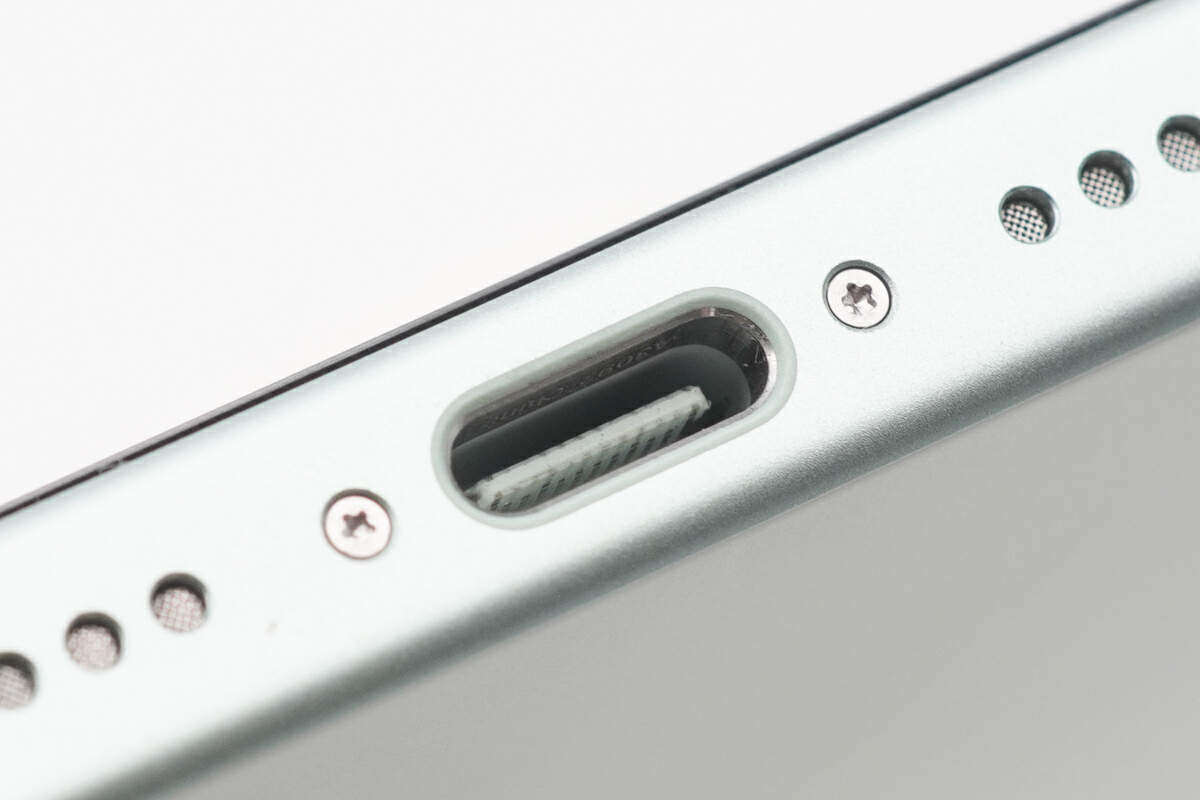

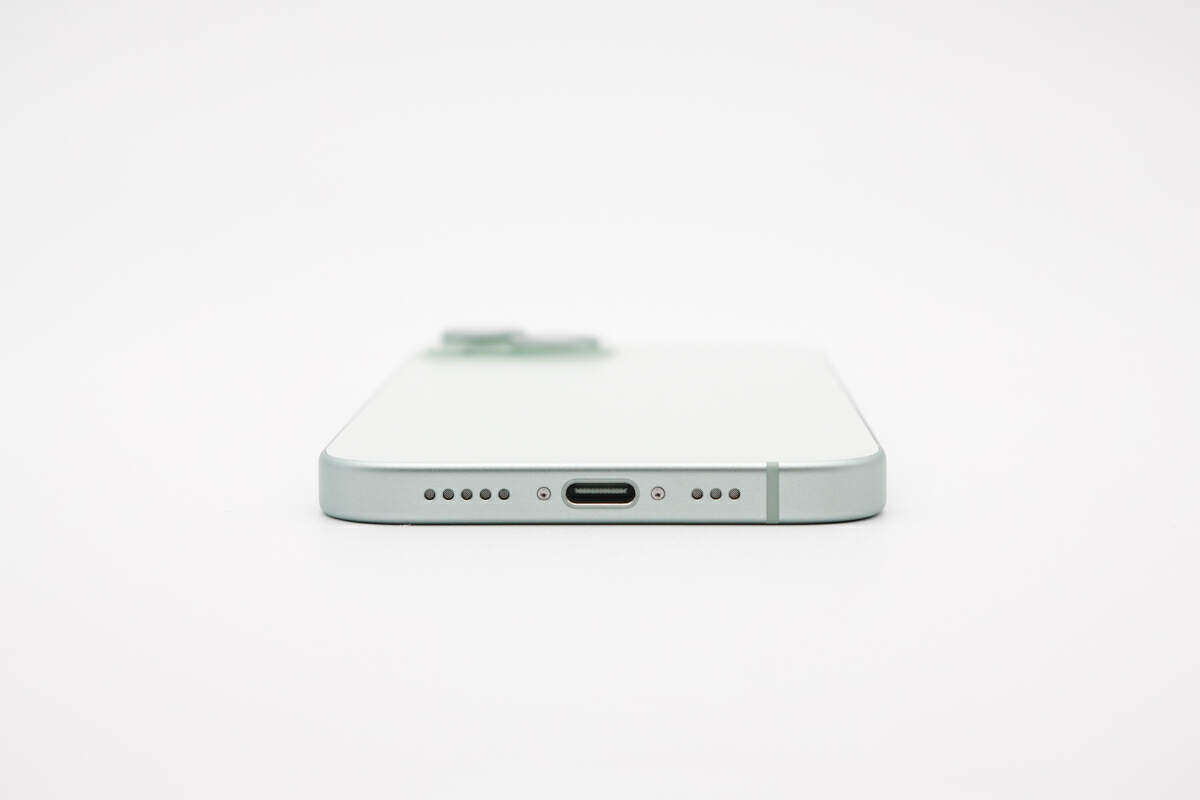

The charging port in the center frame of the bottom of the iPhone 15 phone is a USB Type-C physical interface that supports the USB 2.0 data transfer specification, and there are speaker cutouts on both sides of the port.
The internal rubber core of the USB Type-C interface is pure white, and the special PIN pin design on the rubber core can be seen, and the relevant serial number is engraved on the metal frame of the interface.

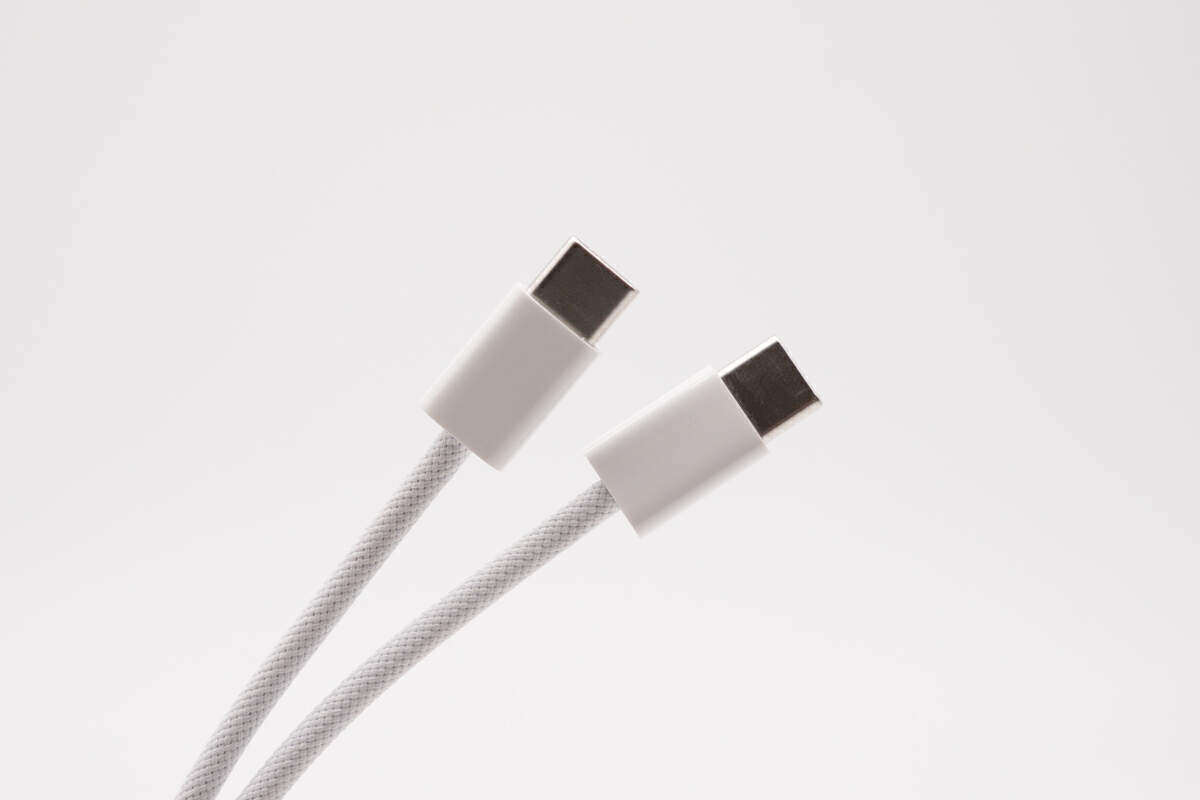

The matching C to C wire is designed with a braided wire body, a flat transition treatment fit with the junction of the sub-end joint, a glossy plastic shell design at the end of the wire, and a rounded transition on both sides.

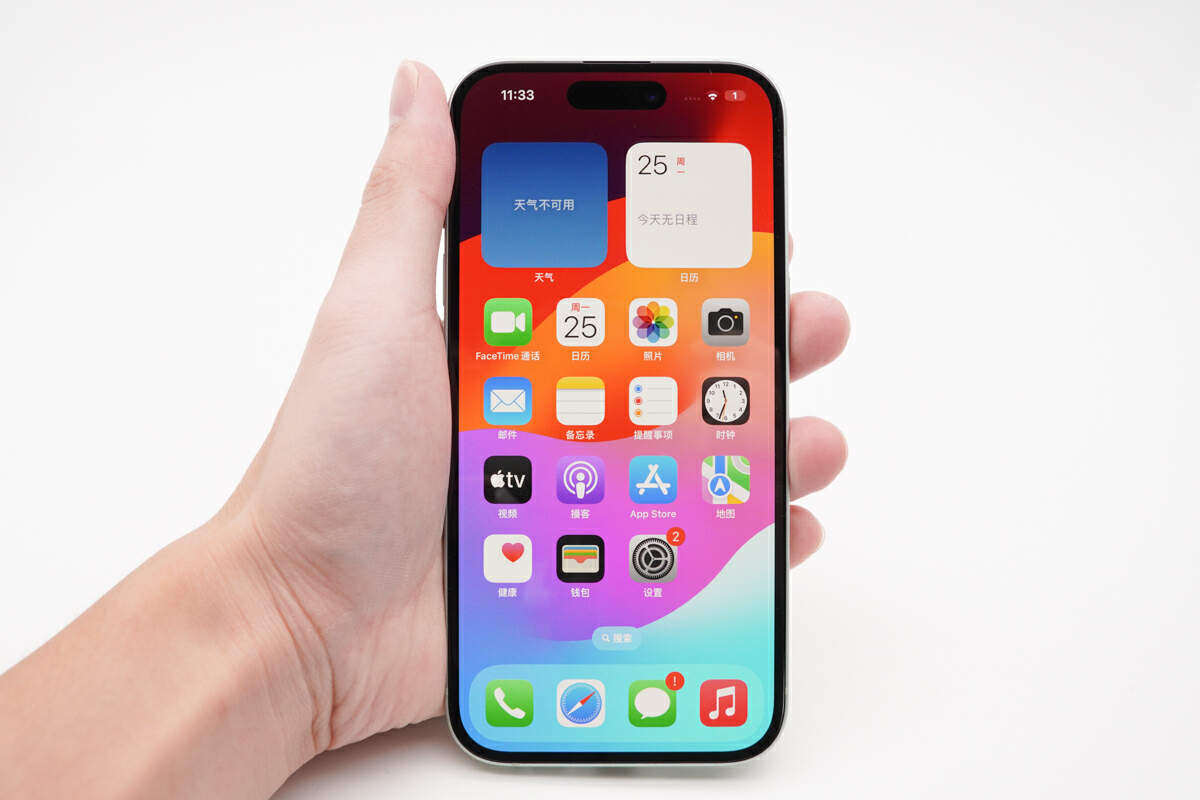

The iPhone 15 officially said that the display is 6.1 inches, but the body is smaller than the previous generation of iPhone models and can still be held with one hand.
Charging test

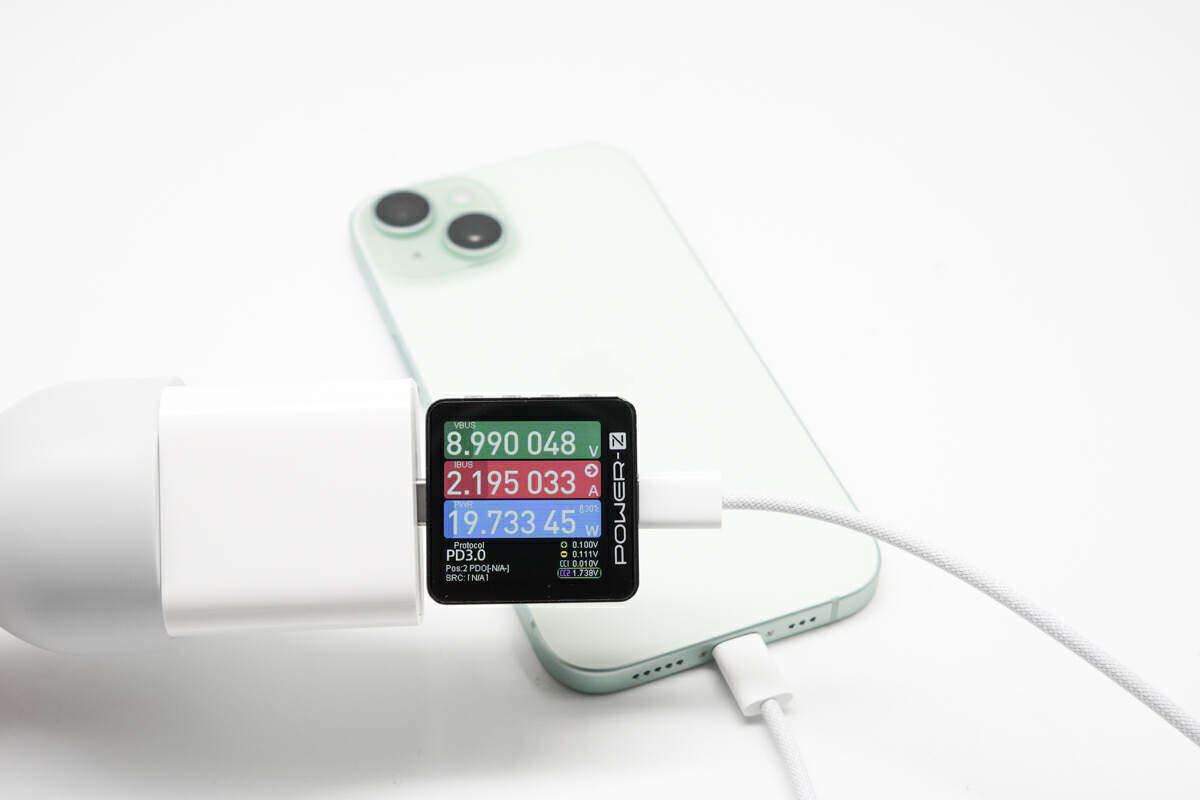

Use the Apple 20W charger with the original C to C charging cable to charge the iPhone 15 mobile phone, and the current power of the measured charger output is 8.99V 2.2A 19.73W.

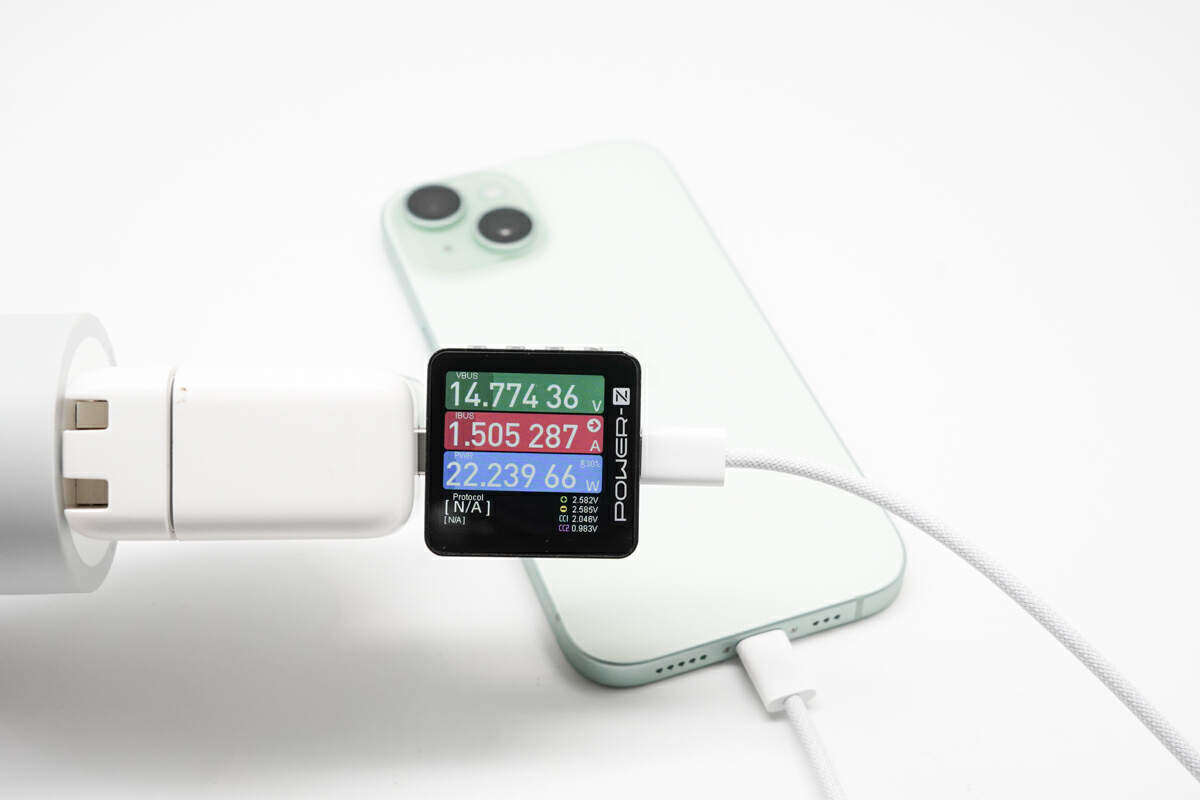

Use the Apple 29W charger with the original C to C charging cable to charge the iPhone 15 mobile phone, and the current power of the measured charger output is 14.77V 1.51A 22.24W.

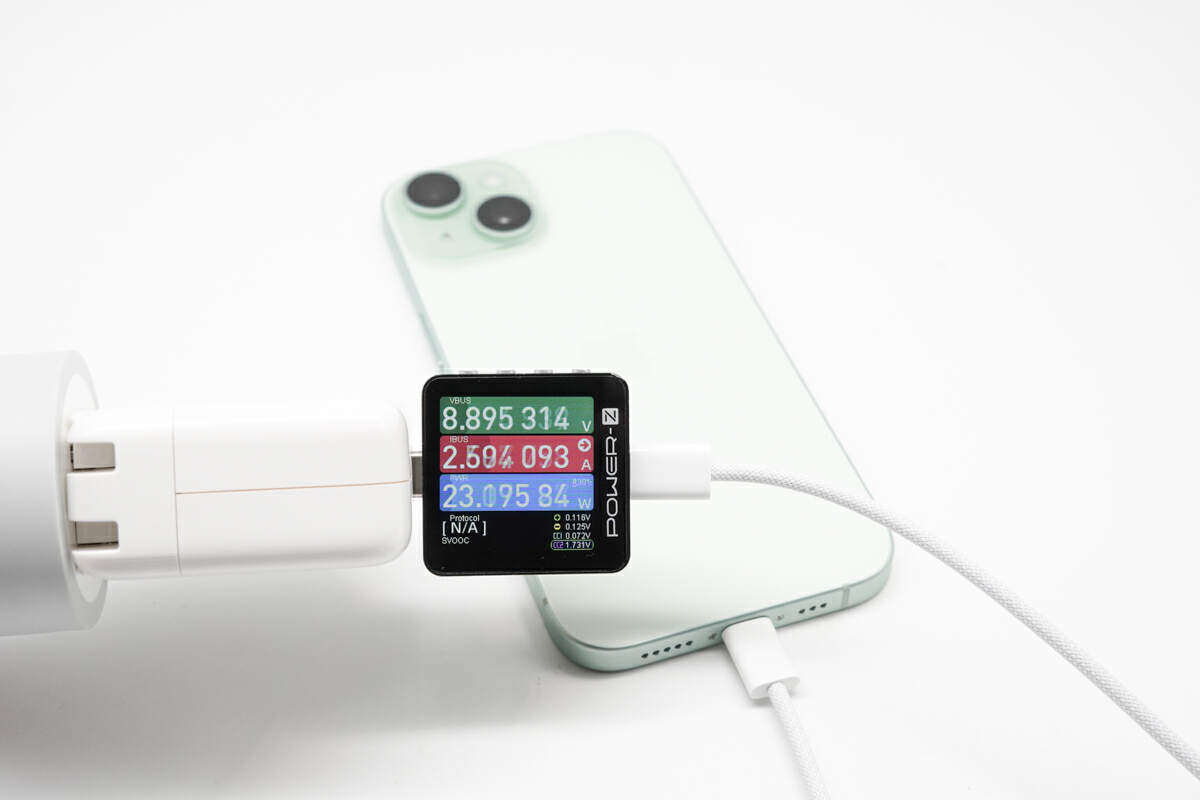

Use the Apple 35W charger with the original C to C charging cable to charge the iPhone 15 mobile phone, and the current power of the measured charger output is 8.9V 2.6A 23.1W.

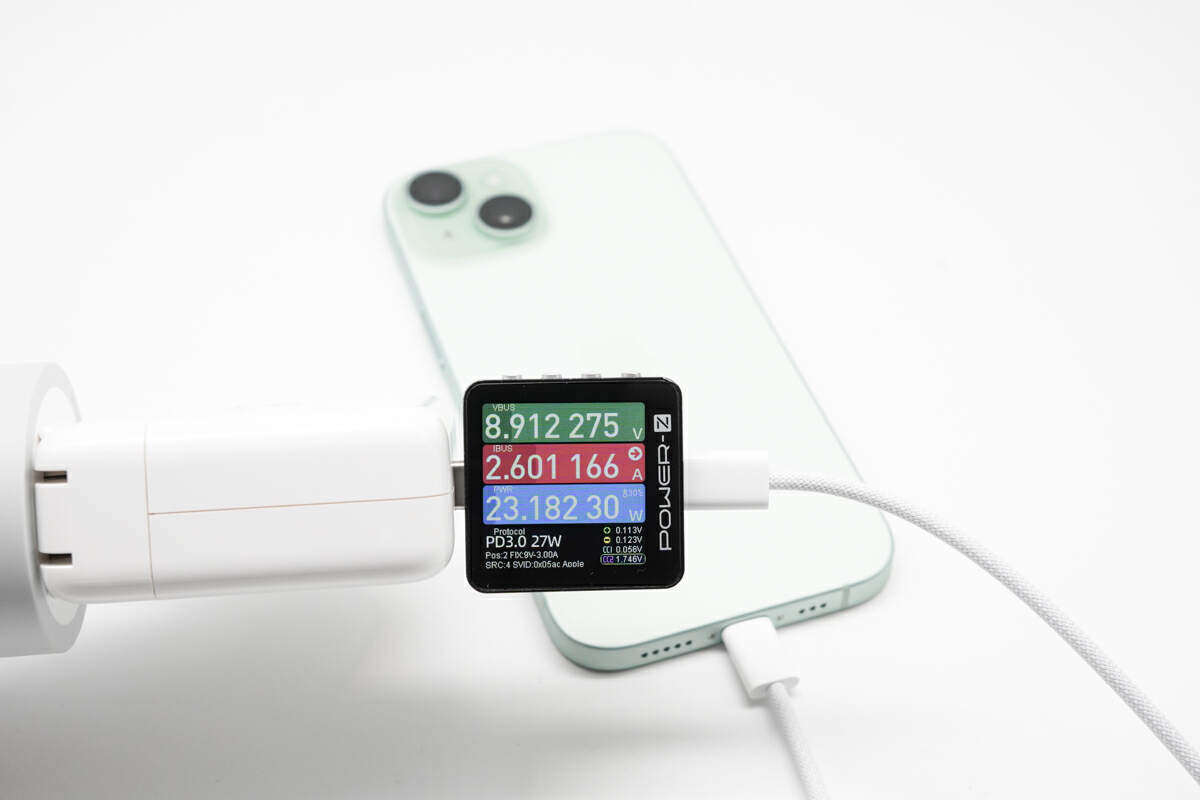

Use the Apple 67W charger with the original C to C charging cable to charge the iPhone 15 mobile phone, and the current power of the measured charger output is 8.91V 2.6A 23.18W.

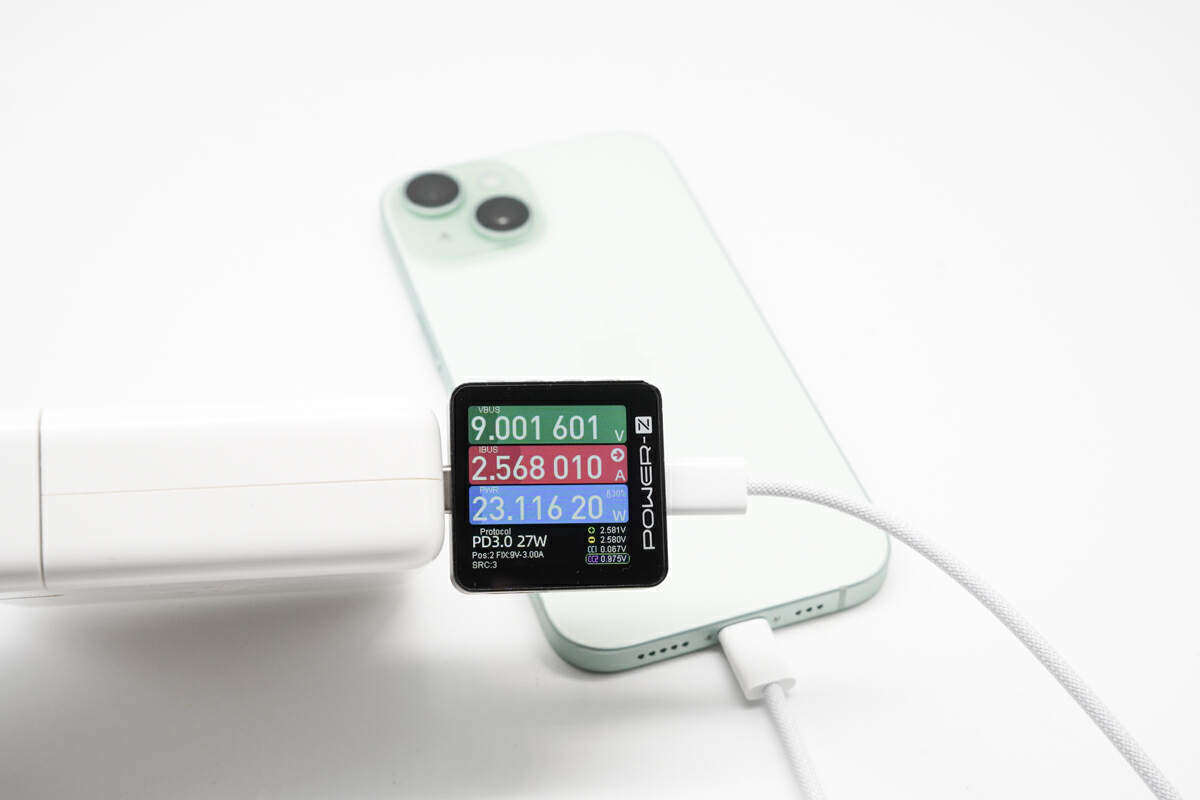

Use the Apple 70W charger with the original C to C charging cable to charge the iPhone 15 mobile phone, and the current power of the measured charger output is 9V 2.57A 23.12W.

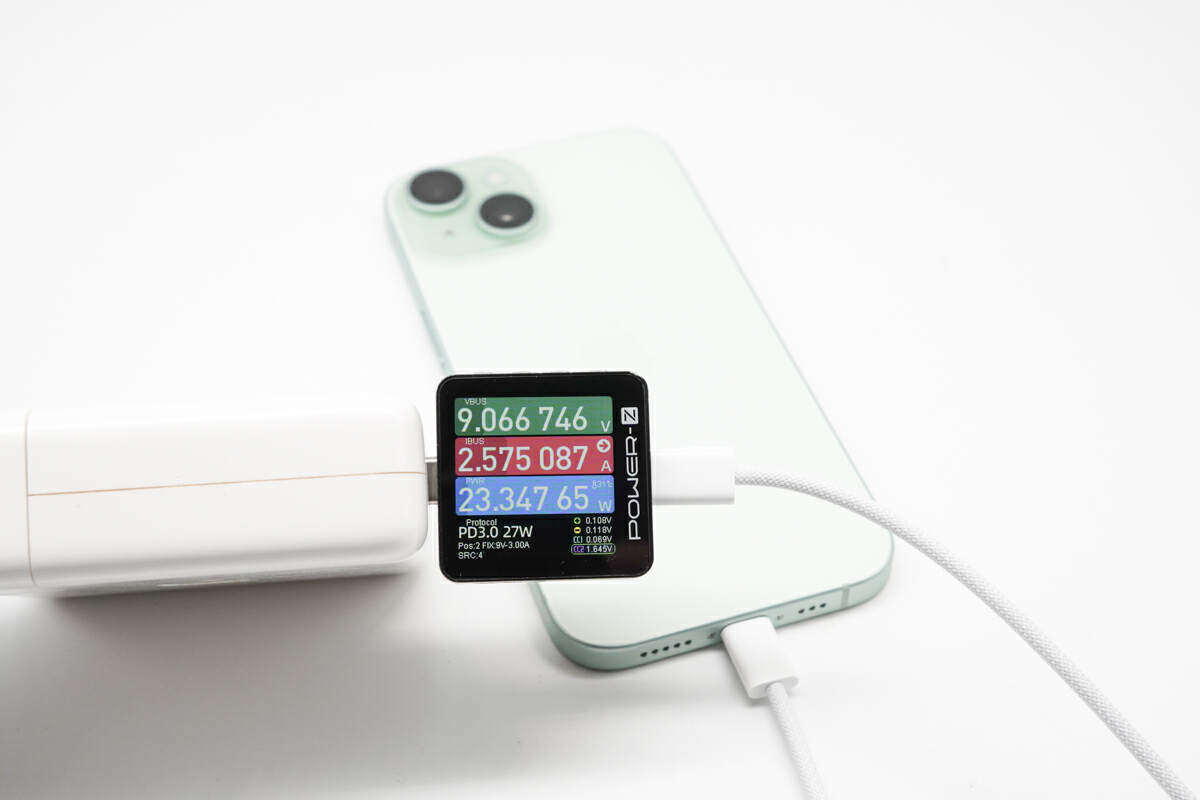

Use the Apple 96W charger with the original C to C charging cable to charge the iPhone 15 mobile phone, and the current power of the measured charger output is 9.07V 2.58A 23.35W.

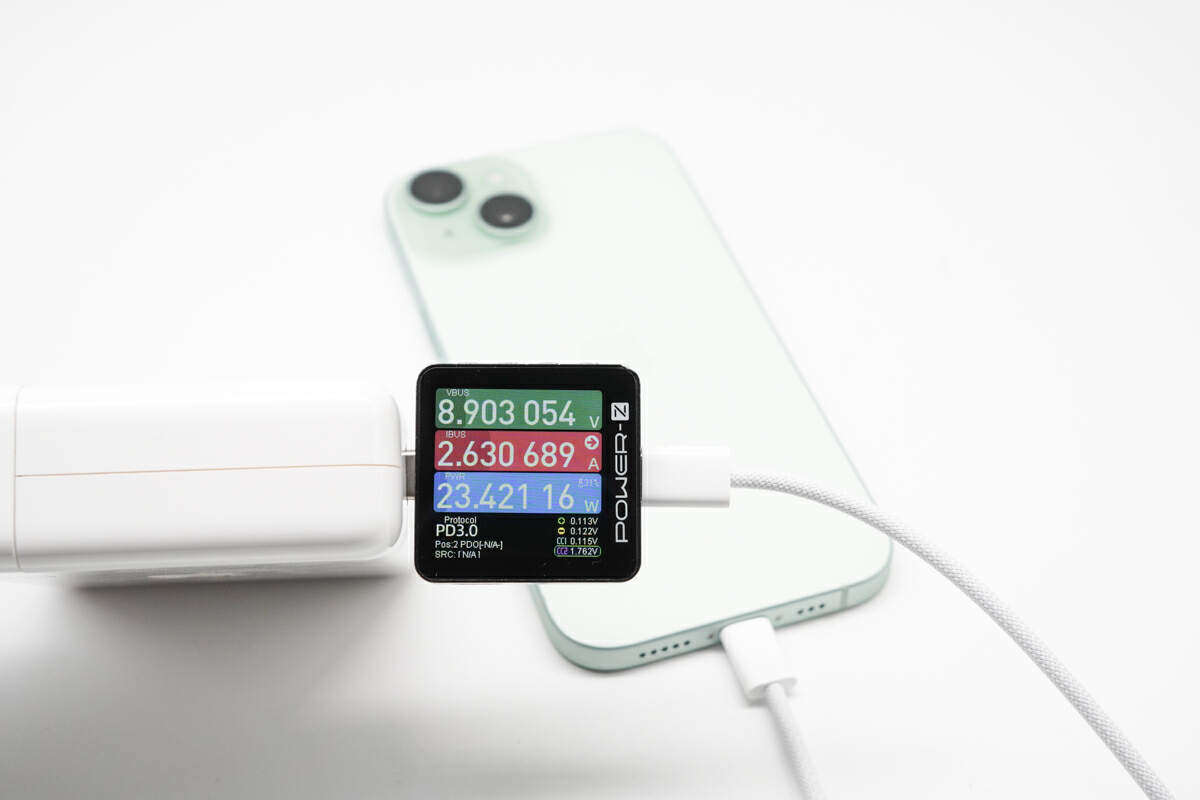

Use the Apple 140W charger with the original C to C charging cable to charge the iPhone 15 mobile phone, and the current power of the measured charger output is 8.9V 2.63A 23.42W.
Full charging test
In terms of test equipment, the Doomay.com selected iPhone 15 and the original 20W, 29W, 35W, 67W, 70W, 96W, 140W charger as the test object, respectively, the original charger and iPhone 15 were placed in a 25°C incubator, and the power was turned on, and the test results are as follows.

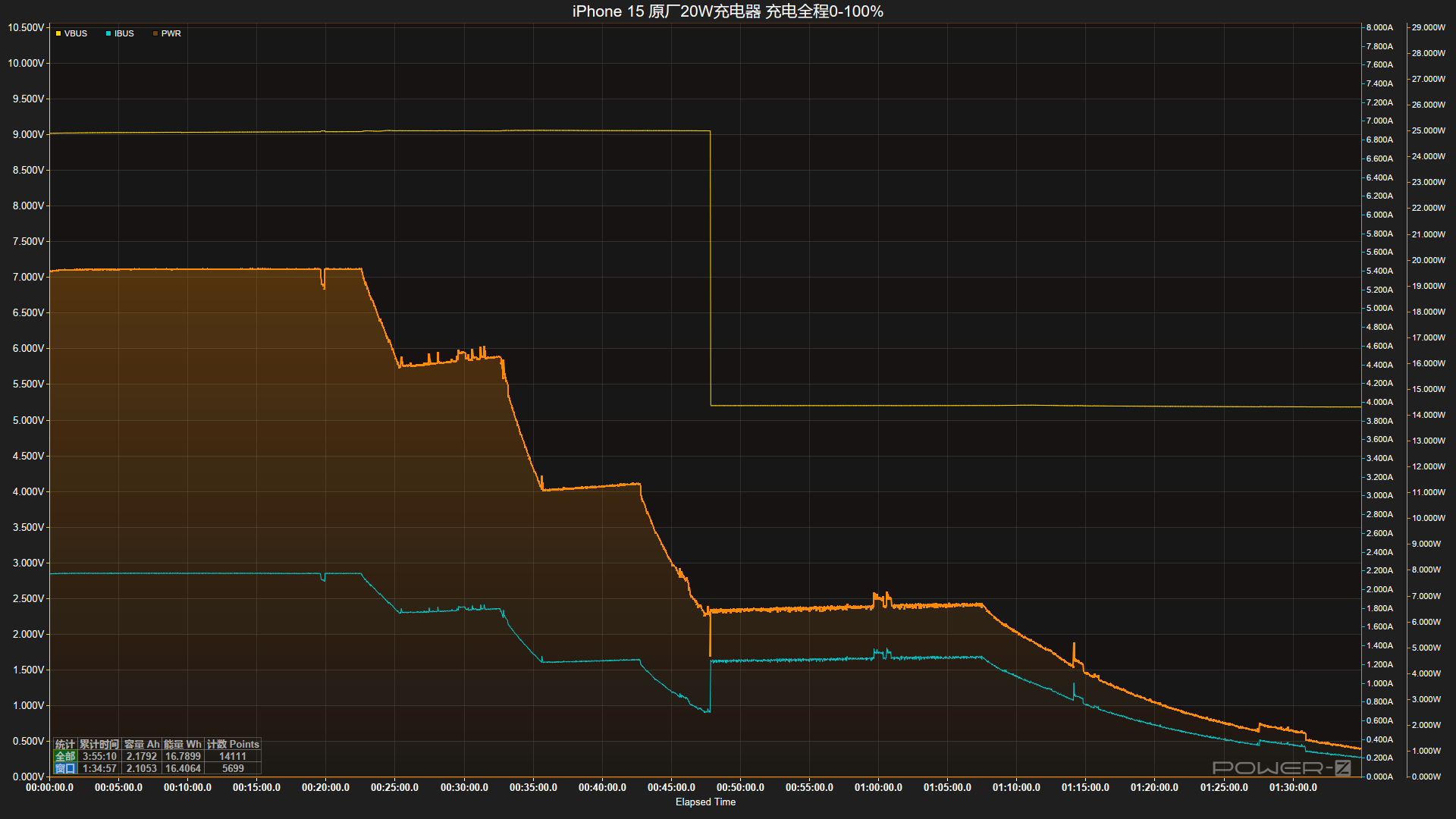

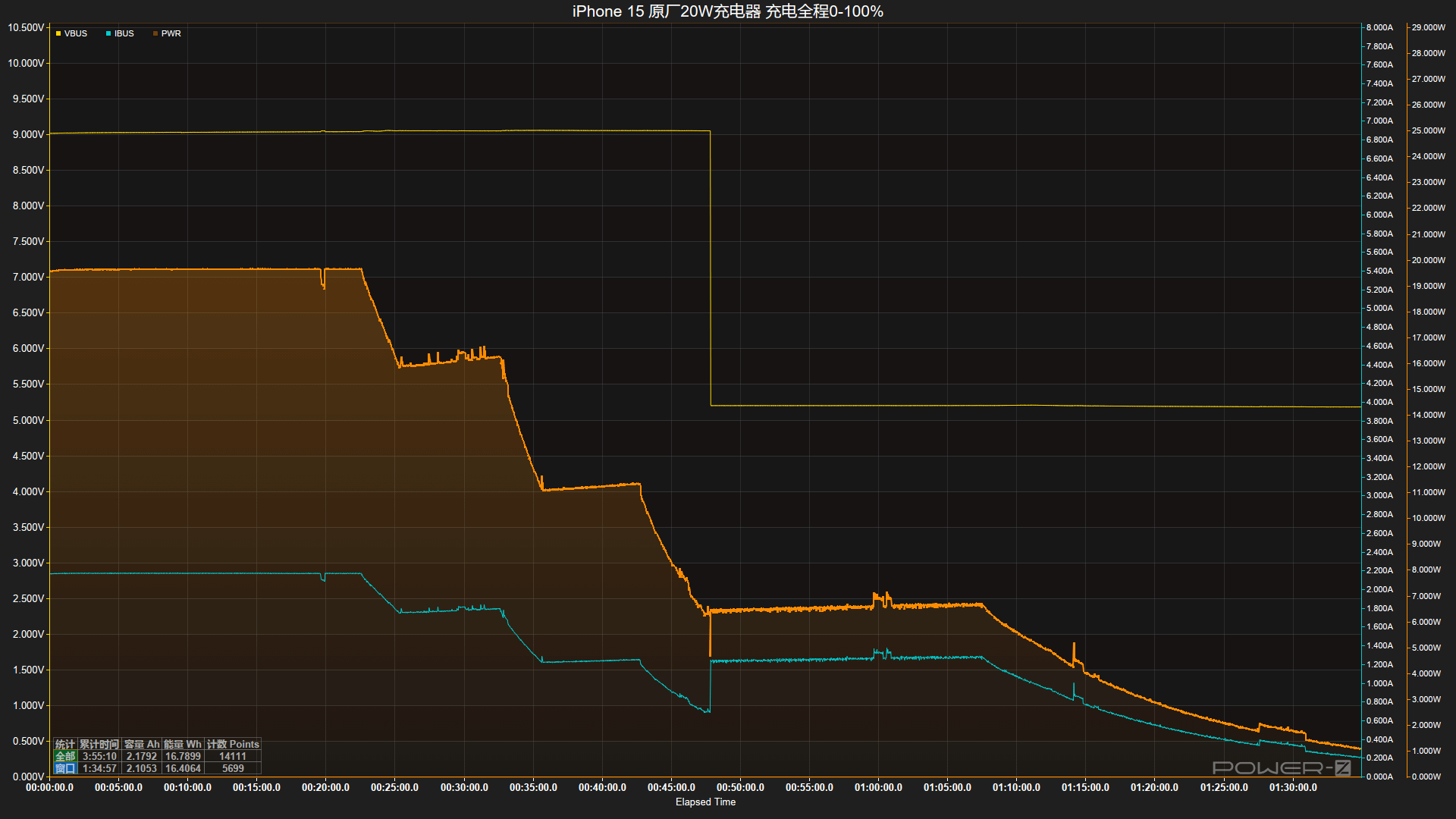

Drawing a line chart, it can be seen that Apple’s 20W charger took 15 hour and 1 minutes to charge the iPhone 35.

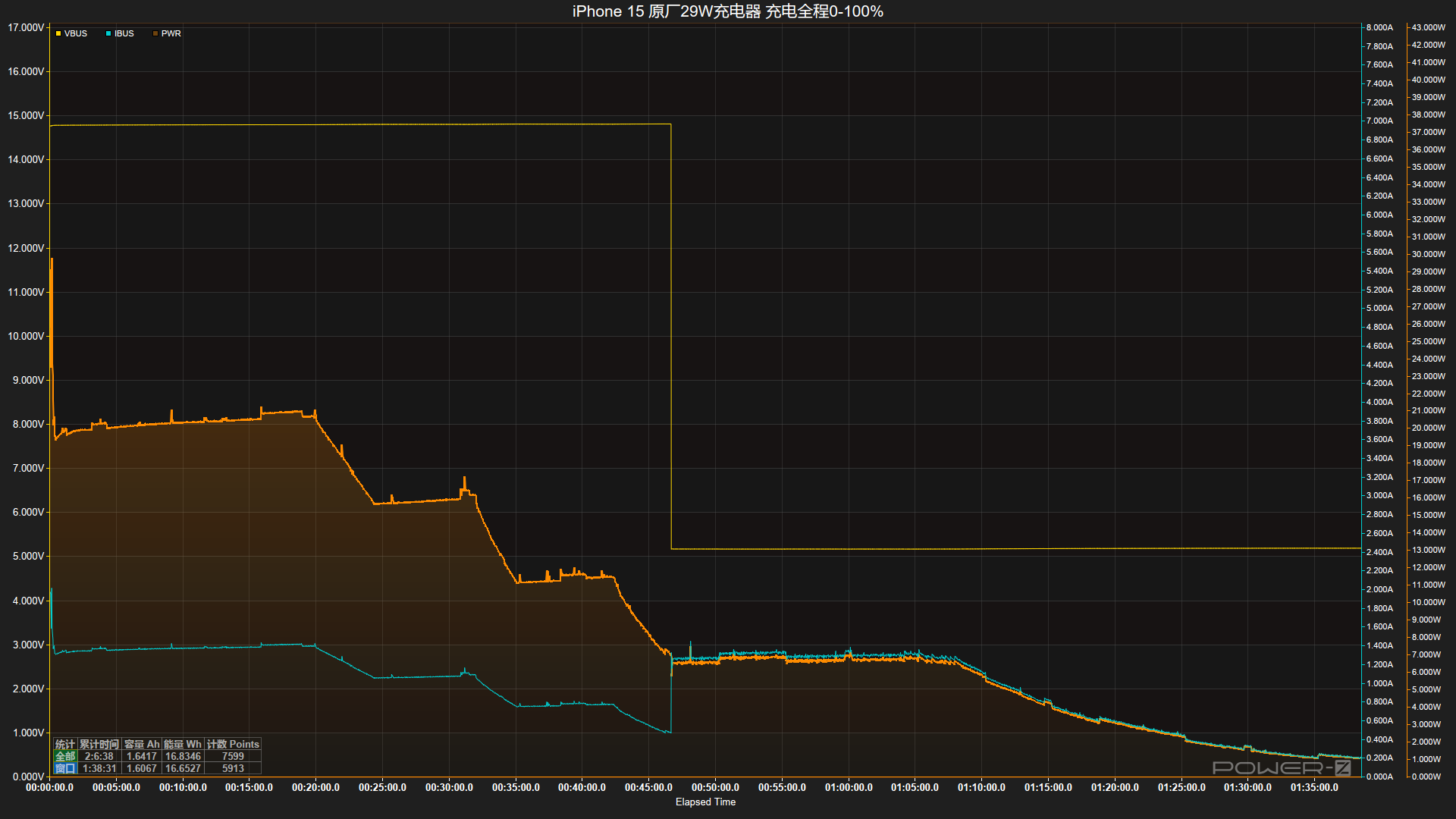

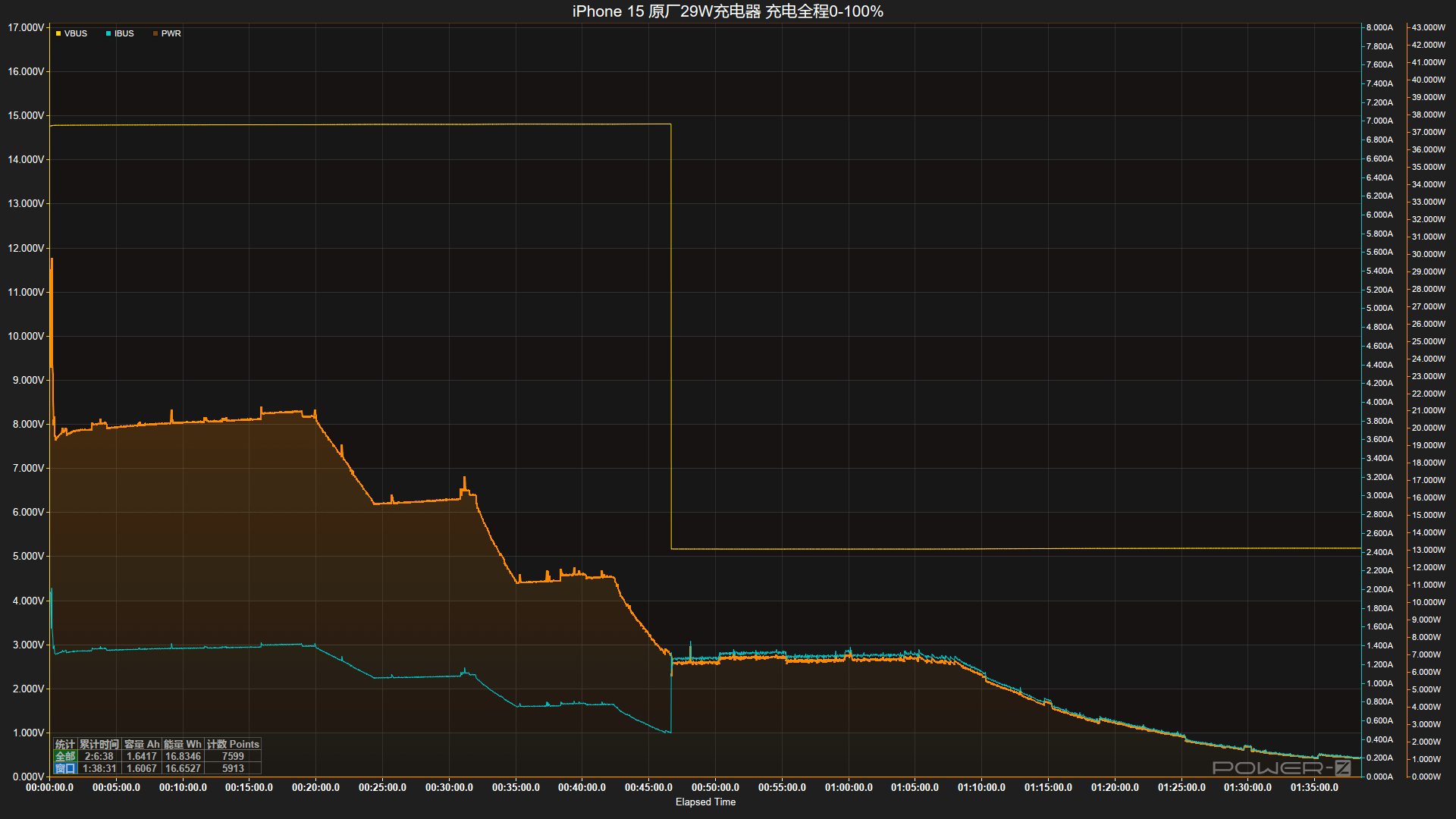

Drawing a line chart, it can be seen that Apple’s 29W charger took 15 hour and 1 minutes to charge the iPhone 38.

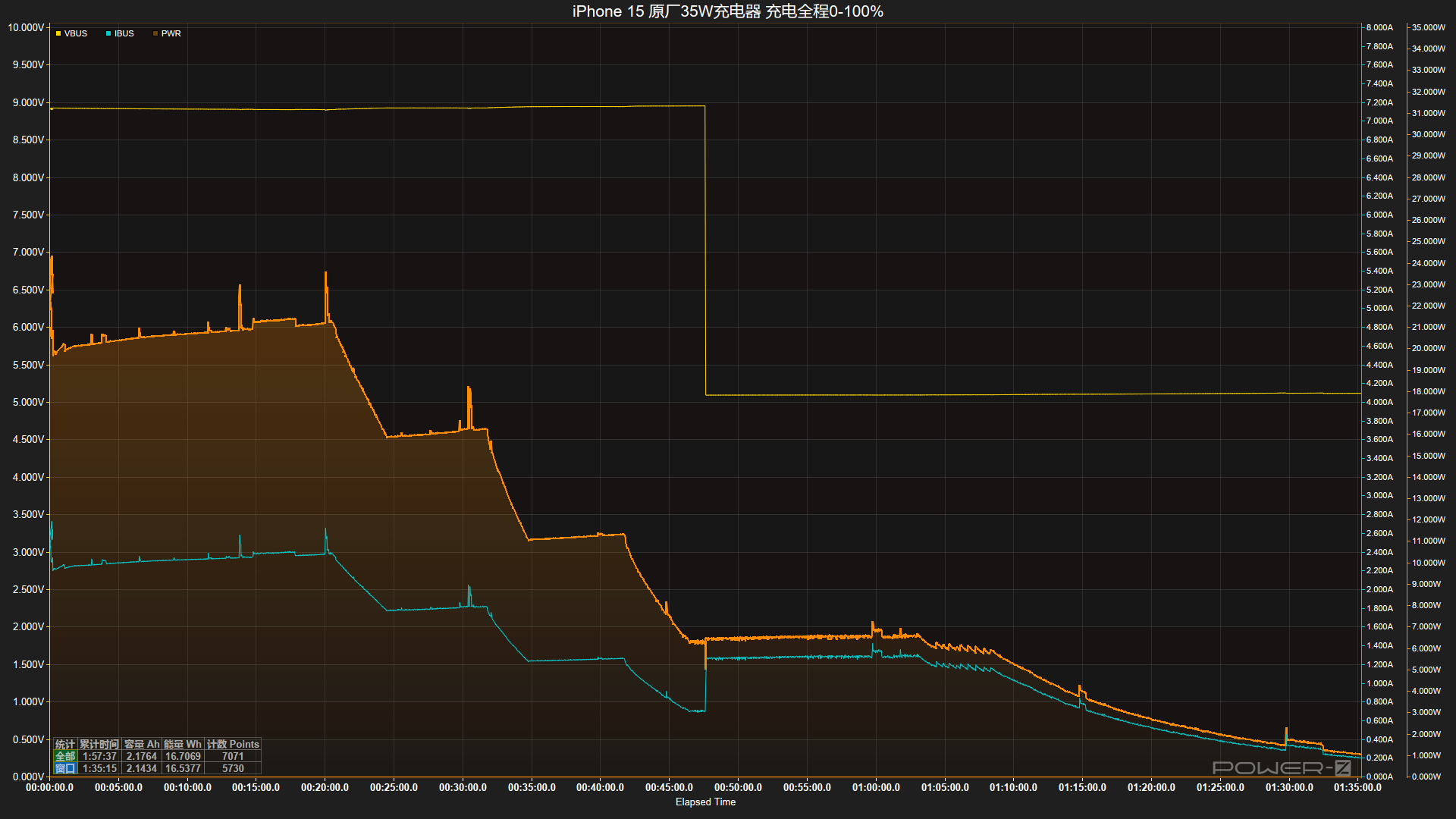

Drawing a line chart, it can be seen that Apple’s 35W charger took 15 hour and 1 minutes to charge the iPhone 35.

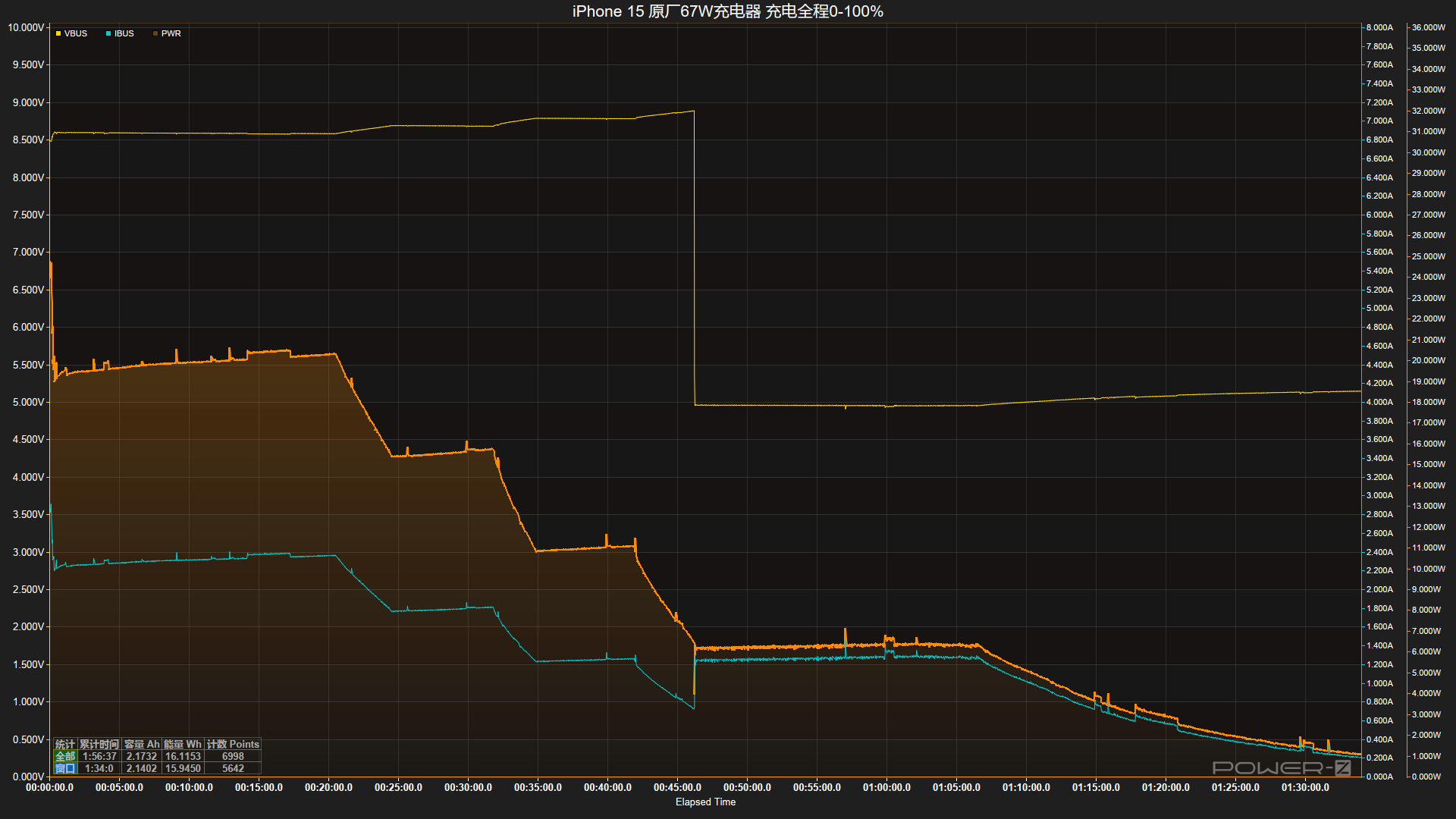

Drawing a line chart, it can be seen that Apple’s 67W charger took 15 hour and 1 minutes to charge the iPhone 34.
Drawing a line chart, it can be seen that Apple’s 70W charger took 15 hour and 1 minutes to charge the iPhone 32.
Drawing a line chart, it can be seen that Apple’s 96W charger took 15 hour and 1 minutes to charge the iPhone 34.
Drawing a line chart, it can be seen that Apple’s 140W charger took 15 hour and 1 minutes to charge the iPhone 32.

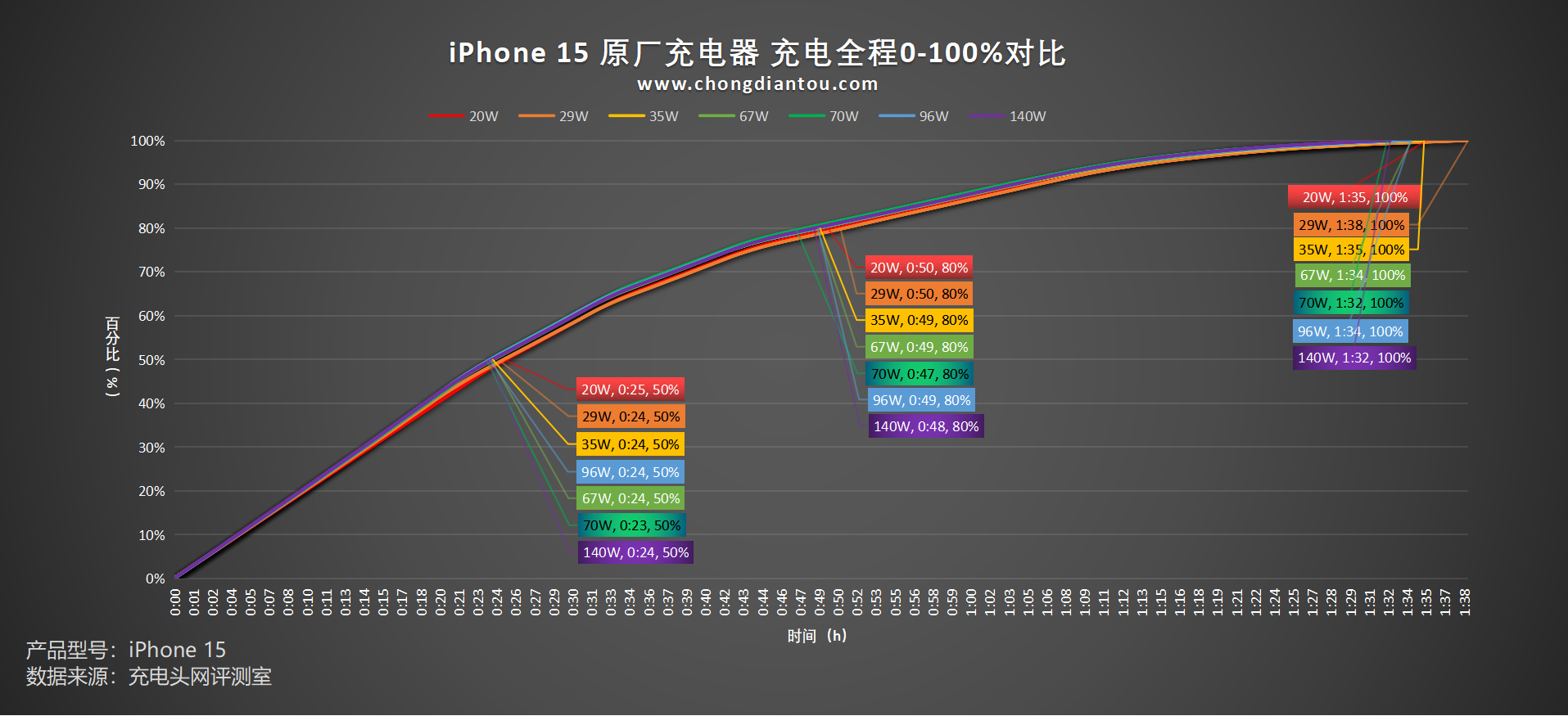

Drawing a line chart, it can be seen that the charging curve of the original charging head of this test is basically the same, and in general, the charging time is basically 1 hour 32 minutes to 1 hour 38 minutes. Among them, Apple’s 70W and 140W chargers charge the iPhone 15 the fastest, taking 1 hour and 32 minutes to charge; The longest charging time is Apple 29W, and it takes 1 hour and 38 minutes to charge.
summary
The above is Apple’s 20W, 29W, 35W, 67W, 70W, 96W, 140W charger to iPhone 15 mobile phone full power test time, you can see that the curve of each charger charging is the same step change, charging time in the range of 1 hour 32 minutes ~ 1 hour 38 minutes, and the line chart of the whole process of charging basically coincide, no obvious changes, but also no charging damage, etc., each new machine user can use it with confidence, you can also open the “80% charging optimization” function, Avoid overcharging.
